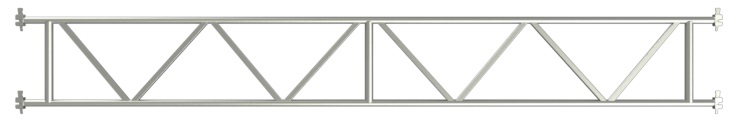

Lattice Girder/Double Truss Ledger

Related products

•

  Read more

  Ringlock Vertical/ Standard

  The Ringlock standard bears the loads from the scaffold down to the earth. It is available on below metric and imperial Sizes.

  Product Code		Description	Effective Length		Unit Weight
  Code	Drawing		Meters	Inch	Lb	Kg
  FLV10	7001.05	1 Ring Vertical W/Spigot	0.50	19.69	6.73	3.05
  FLV33	7001.10	2 Ring Vertical W/Spigot	1.00	39.37	11.91	5.40
  FLV411	7001.15	3 Ring Vertical W/Spigot	1.50	59.05	16.54	7.50
  FLV66	7001.20	4 Ring Vertical W/Spigot	2.00	78.74	20.95	9.50
  FLV82	7001.25	5 Ring Vertical W/Spigot	2.50	98.42	25.91	11.75
  FLV910	7001.30	6 Ring Vertical W/Spigot	3.00	118.10	32.41	14.70



  Read more
•

  Read more

  Steel Plank with Hooks

  Steel decks with an integrated anti-lift device create a working platform for scaffold.

  Product Code		Description	Effective Length		Unit Weight
  Code	Drawing		Meters	Inch	Lb	Kg
  SSP30	12003.30	3′ x 9″ Steel Plank w/Hooks	0.91	36	15.70	7.10
  SSP36	12003.36	3’6″ x 9″ Steel Plank w/Hooks	1.07	42	17.10	7.70
  SSP4	12003.40	4′ x 9″ Steel Plank w/Hooks	1.22	48	19.00	8.60
  SSP5	12003.50	5′ x 9″ Steel Plank w/Hooks	1.52	60	23.20	10.50
  SSP6	12003.60	6′ x 9″ Steel Plank w/Hooks	1.83	72	26.50	12.00
  SSP7	12003.70	7′ x 9″ Steel Plank w/Hooks	2.13	84	31.00	14.20
  SSP8	12003.80	8′ x 9″ Steel Plank w/Hooks	2.44	96	35.40	16.10
  SSP9	12003.90	9′ x 9″ Steel Plank w/Hooks	2.74	108	39.80	18.10
  SSP10	12003.10	10′ x 9″ Steel Plank w/Hooks	3.05	120	42.90	19.50

  Read more
•

  Read more

  Ringlock Horizontal/Legders

  The Ringlock ledger is used as support for Planks and also be used as guard rail. Available in Metric & Imperial sizes.

  Product Code		Description	Effective Length		Unit Weight
  Code	Drawing		Meters	Inch	Lb	Kg
  FLH22	7002.2’2″	2′-2″ Ledger/Horizontal	0.65	26	6.95	3.15
  FLH24	7002.2’4″	2′-4″ Ledger/Horizontal	0.73	28	7.39	3.35
  FLH25	7002.2’5″	2′-5″ Ledger/Horizontal	0.74	29	7.43	3.37
  FLH26	7002.2’6″	2′-6″ Ledger/Horizontal	0.75	30	7.47	3.39
  FLH211	7002.2’11”	2′-11″ Ledger/Horizontal	0.88	35	7.72	3.50
  FLH30	7002.3′	3′ Ledger/Horizontal	0.91	36	9.26	4.20
  FLH36S	7002.3’6″s	3′-6″Ledger/Horizontal	1.07	42	10.25	4.65
  FLH36	7002.3’6″	3′-6” Ledger/Horizontal	1.09	42	10.36	4.70
  FLH39	7002.3’9″	3′-9” Ledger/Horizontal	1.15	45	11.44	5.19
  FLH40	7002.4′	4′ Ledger/Horizontal	1.22	48	11.47	5.20
  FLH41	7002.4’1″	4′-1” Ledger/Horizontal	1.25	49	11.88	5.39
  FLH43	7002.4’3″	4′-3” Ledger/Horizontal	1.29	51	12.02	5.45
  FLH410	7002.4’10”	4′-10” Ledger/Horizontal	1.48	58	13.56	6.15
  FLH411	7002.4’11”	4′-11” Ledger/Horizontal	1.50	59	13.60	6.17
  FLH50	7002.5′	5′ Ledger/Horizontal	1.52	60	13.89	6.30
  FLH52	7002.5’2″	5′ 2″ Ledger/Horizontal	1.57	62	14.33	6.50
  FLH60	7002.6′	6′ Ledger/Horizontal	1.83	72	16.32	7.40
  FLH69	7002.6’9″	6′-9” Ledger/Horizontal	2.07	81	18.24	8.27
  FLH70	7002.7′	7′ Ledger/Horizontal	2.13	84	18.37	8.33
  FLH80	7002.8′	8′ Ledger/Horizontal	2.44	96	21.17	9.60
  FLH86	7002.8’6″	8′-6” Ledger/Horizontal	2.57	102	22.69	10.29
  FLH90	7002.9′	9′ Ledger/Horizontal	2.74	108	25.07	11.37
  FLH100	7002.10′	10′ Ledger/Horizontal	3.05	120	26.15	11.86

  Read more
•

  Read more

  Ringlock Bay Braces/Diagonals

  Product Code		Description	Effective Length		Unit Weight
  Code	Drawing		Meters	Height	Lb	Kg
  FLVD36	7003.3’6″	3′-6” Bay Braces / Diagonals	1.09	2	12.13	5.50
  FLVD39	7003.3’9″	3′-9” Bay Braces / Diagonals	1.15	2	13.01	5.90
  FLVD40	7003.4′	4′ Bay Braces / Diagonals	1.22	2	13.89	6.30
  FLVD43	7003.4’3″	4′-3” Bay Braces / Diagonals	1.29	2	14.77	6.70
  FLVD410	7003.4’10”	4′-10” Bay Braces / Diagonals	1.48	2	16.76	7.60
  FLVD411	7003.4’11”	4′-11” Bay Braces / Diagonals	1.50	2	17.20	7.80
  FLVD50	7003.5′	5′ Bay Braces / Diagonals	1.52	2	17.42	7.90
  FLVD69	7003.6’9″	6′-9” Bay Braces / Diagonals	2.07	2	23.59	10.70
  FLVD70	7003.7′	7′ Bay Braces / Diagonals	2.13	2	24.48	11.10
  FLVD80	7003.8′	8′ Bay Braces / Diagonals	2.44	2	28.00	12.70
  FLVD86	7003.8’6″	8′-6” Bay Braces / Diagonals	2.57	2	29.55	13.40
  FLVD100	7003.10′	10′ Bay Braces / Diagonals	3.05	2	34.84	15.80

  Read more
